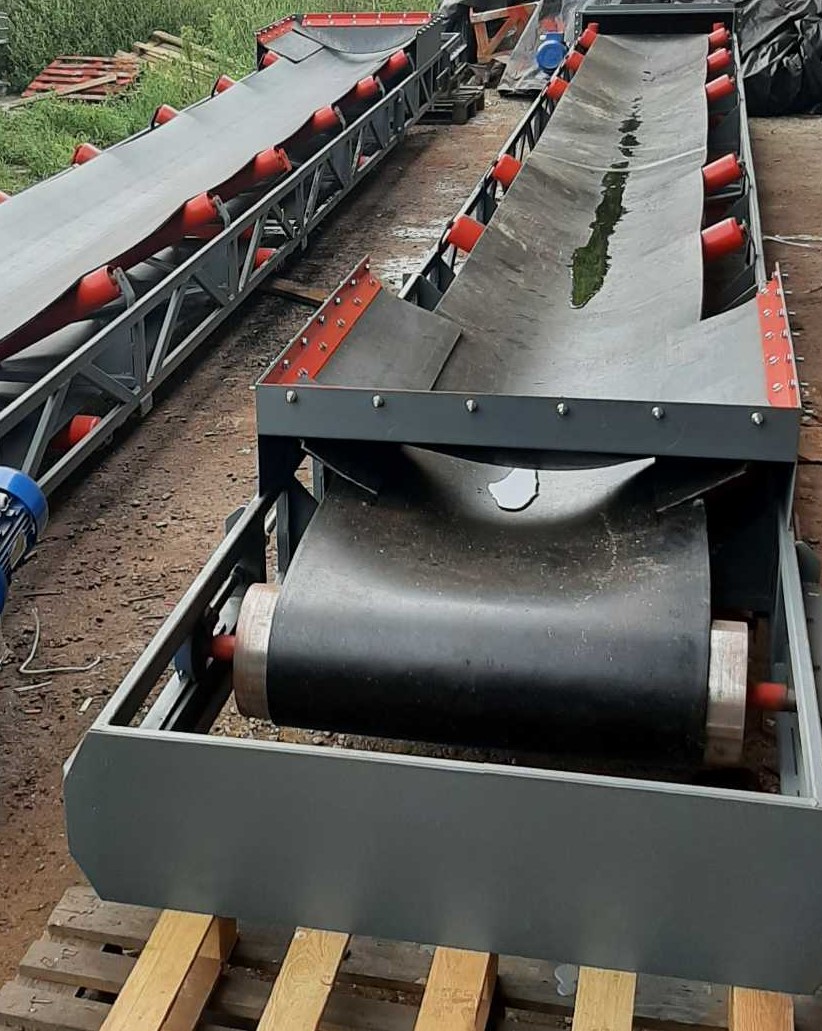

KLP Profiled Frame Belt Conveyor

When it comes to transporting large volumes of cargo over significant distances, industrial-grade equipment is required. The KLP-type profiled frame belt conveyor is a powerful and reliable solution engineered for the most demanding conditions. Its foundation is a sturdy truss frame made from profile tubing, allowing it to move loads with a capacity of up to 1000 t/h over a distance of up to 1 kilometer.

When Should You Choose a Profiled Frame Belt Conveyor?

This type of conveyor is the ideal choice for specific conditions where standard solutions are not suitable:

• Large Spans: The truss frame construction allows for long sections (up to 6000 mm) and can handle large distances between intermediate supports. This is perfect for creating conveyor galleries between buildings or over obstacles.
• High Rigidity: It ensures structural stability on very long conveyor routes.
• Integrated Service Platform: The truss design makes it easy to integrate a service walkway along the conveyor for safe and convenient access.
• Mobility: This type of frame can be easily mounted on a wheeled base to create a mobile conveyor.

Construction and Technical Features

Although the profiled frame conveyor is typically manufactured in an open design, it can be fitted with protective covers. All elements are connected with reliable bolted connections on flanges.

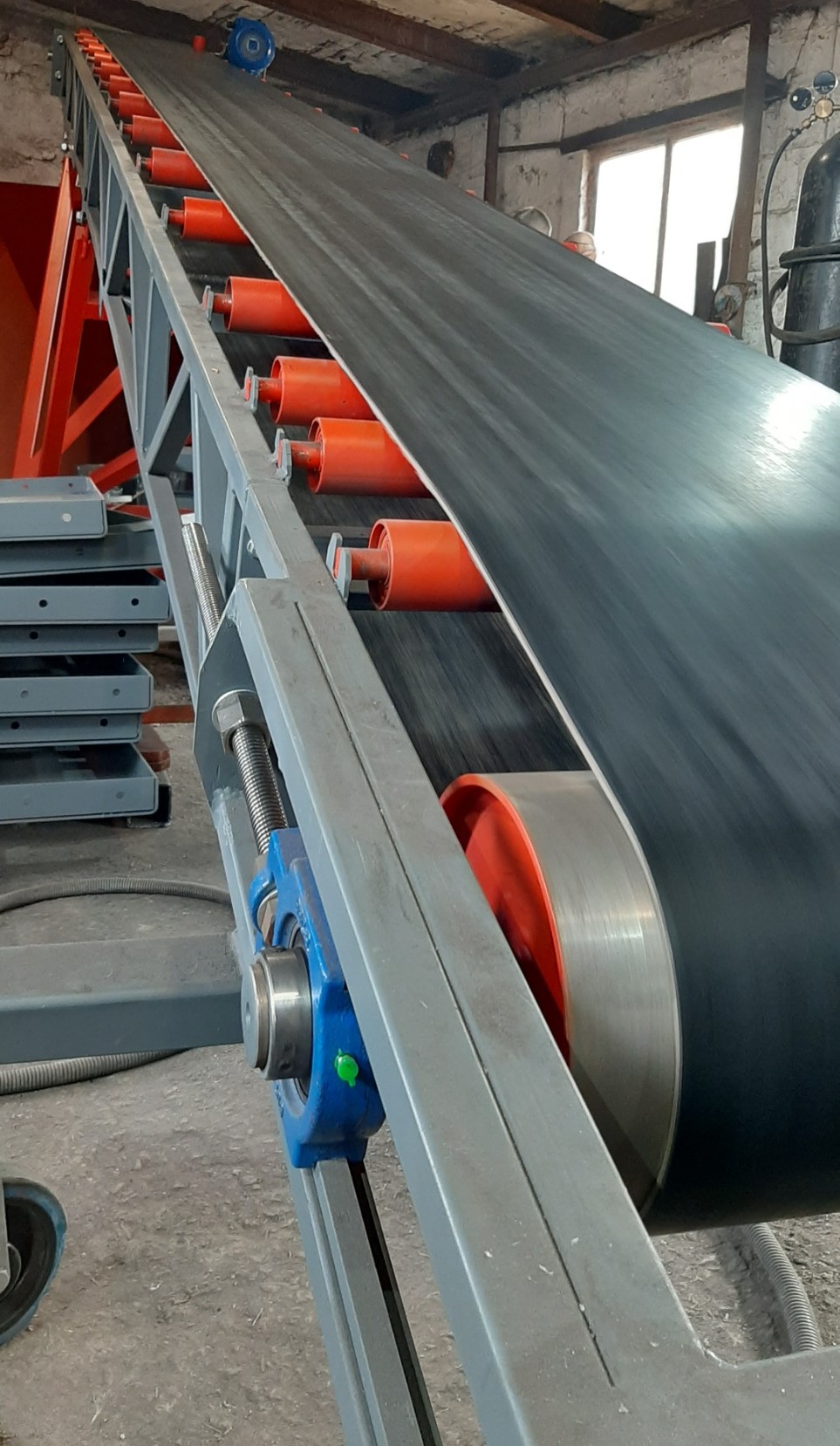

Idlers, Belt, and Pulleys

• Idlers: Rollers with diameters from 57 to 159 mm are used to support the belt. The troughed shape of the idlers allows for moving a larger volume of cargo.
• Belt: On conveyors with an incline angle of up to 15-20°, a smooth belt is used. For steeper angles, a chevron belt is used to prevent the cargo from rolling back.
• Pulleys: Their diameter (from 159 mm to 930 mm) depends on the belt type and the load. For better traction and to prevent slippage, the pulleys are lagged with rubber using hot or cold vulcanization methods.

Discharge and Safety Systems

The profiled conveyor can be equipped with plow dischargers or a special tripper car. This allows for product discharge at any point along the conveyor's length, which is very convenient for filling long grain storage facilities.

Safety is a priority, so the conveyors are equipped with a full set of sensors:

• Speed and belt misalignment sensors.
• Longitudinal belt rip detection sensor.
• Pull-cord emergency switches along the entire route for an immediate stop in case of danger.

How to Order or Buy a Profiled Frame Belt Conveyor in Ukraine

If you want to buy a reliable industrial conveyor in Ukraine, you can order one by providing us with the initial data for calculation. The price of a profiled frame belt conveyor depends on many factors:

• Length and width of the conveyor line.
• Required capacity (t/h).
• Incline angle.
• Cargo characteristics.
• Additional options (service platform, discharge systems, covers).

We use only reliable gear motors with a high service factor to guarantee the durability and uninterrupted operation of your equipment. Contact us for a detailed consultation and calculation.
