Conveyor for Ash and Slag (KSLD)

The KSLD-type chain conveyor for ash is a specialized piece of industrial equipment engineered for the harshest operating conditions: the continuous removal of hot ash, slag, and unburnt fuel residues from boilers.

This ash removal conveyor can transport material horizontally or at an incline of up to 45 degrees, ensuring the stable operation of the boiler room. It can also be used as a conveyor for coal and ash, performing a dual function.

Key Advantage: The Double-Chain Design

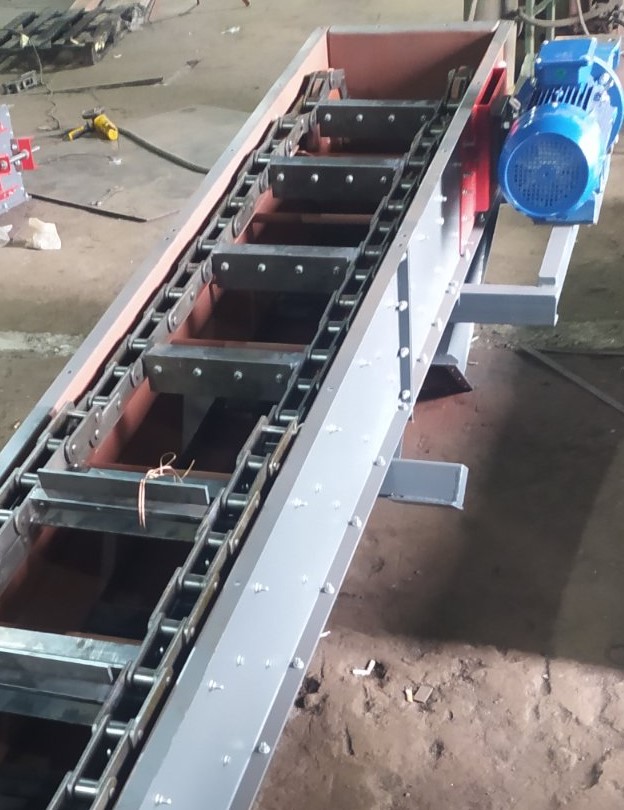

The main distinguishing feature and engineering achievement of the KSLD conveyor is its use of a double-chain mechanism. This provides several critical advantages:

  • Jam-Free Operation: Wide, reinforced scrapers attached to two chains easily move large pieces of slag, rocks, and other foreign objects that could jam a single-chain mechanism.
  • Reduced Load: The load (both thermal and mechanical) is evenly distributed across the two chains, which significantly extends their service life.
  • Reliability: The design includes special elements to reduce chain wear.

Materials and Construction for Extreme Conditions

Working with hot and abrasive material demands a special approach to the choice of materials and construction.

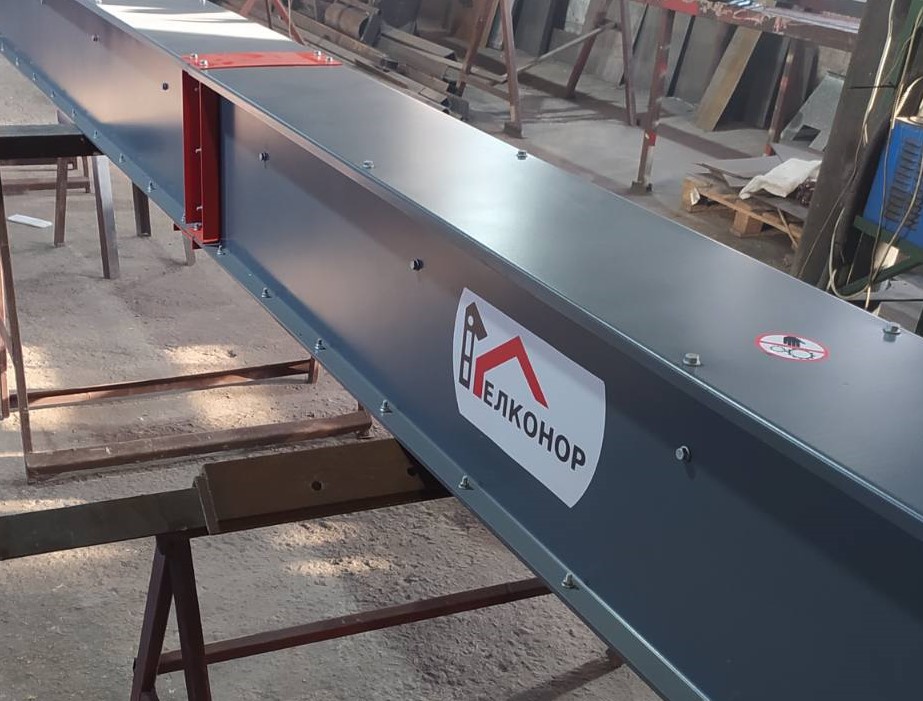

  • Heat-Resistant Casing: Depending on the temperature of the ash, the conveyor casing is made from structural, high-temperature, or stainless steel of the appropriate thickness.
  • Mechanism Protection: Special guides on the bottom and walls of the casing minimize the ingress of abrasive particles into the chain, which increases the equipment's dependability.
  • Chain: For maximum resistance to corrosion and high temperatures, the chain can also be made from stainless steel.

How to Order and Buy a KSLD Conveyor in Ukraine

An ash conveyor is a piece of equipment that operates 24/7, so the focus on reliability is paramount. If you want to buy or order such a transporter in Ukraine, we guarantee the highest quality components:

  • Bearing Assemblies: We use only proven brands, such as SKF and SNR.

  • Safety System: Sensors for product choke, chain break, and speed control are included in the standard package, not as an optional extra.

Each KSLD conveyor is custom-designed. Contact our specialists to discuss your technical requirements and receive a commercial proposal.

Description Parameters
Аsh productivity, t/h from 0,5 to 10
Conveyor length, m from 3 to 60
Chain movement speed, m/s from 0,1 to 0,6
Tightener helical
Supporting element guides
Angle of inclination, degrees to 45
Drive power, kW from 1,1 to 37
Tightness maximum
Production period, days to 30
Warranty, months from 18
