Chain conveyor for chips

Scraper conveyor

Detailed description
Technical characteristics

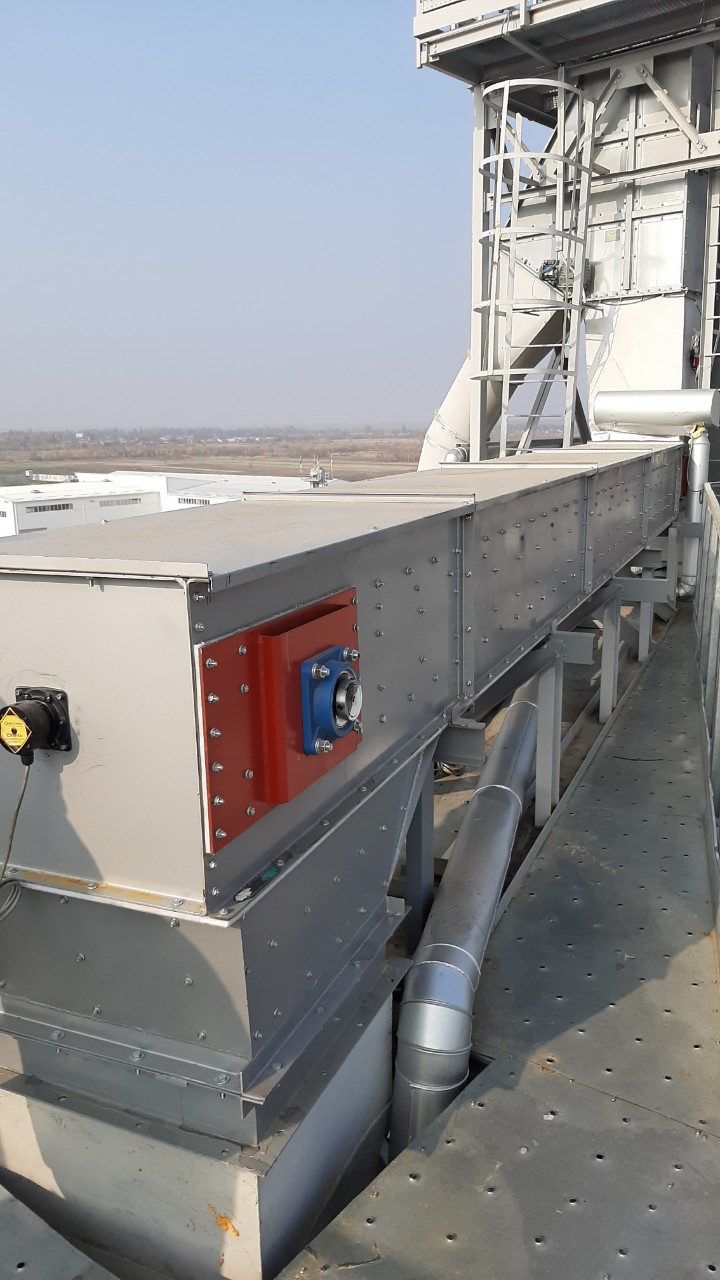

The chain conveyor for wood chips and pellets of the KSLT type is used to move wood chips, sawdust and pellets in a horizontal plane and with angles of inclination up to 45 degrees. The conveyor is two-chain with reinforced scrapers and special elements to protect the chains from product ingress.

 The company's engineers developed and manufactured conveyors with a width of 1200 mm with a capacity of more than 200 t/h for wood chips, the company has been working for more than three years without complaints or breakdowns.

 Reliable bearing assemblies with a high degree of protection are used, the material of the shafts and sprockets is St45 or St40X.

 The scrapers are replaceable and are attached to M-type chains on special brackets and are made of polyethylene with a thickness of 15 mm or more.

 To ensure reliability, well-known manufacturers of motor-reducers with explosion-proof motors are used.

 Control cabinets are used to control the conveyor for wood chips and pellets, and sensors for monitoring revolutions, chain breaks and product support are used for control.

Description Parameters
Productivity on wood chips, t/h from 1 to 250
Conveyor length, m from 3 to 60
Chain movement speed, m/s to 0,5
Tightener helical
Supporting element guides
Angle of inclination, degrees to 45
Drive power, kW rom 1,1 to 75
Tightness maximum
Production period, days to 45
Warranty, months from 18
