Steep Incline Chain Conveyor ("Gooseneck")

When you need to transport grain along a complex trajectory, such as from an intake pit to a significant height, standard solutions often fall short.

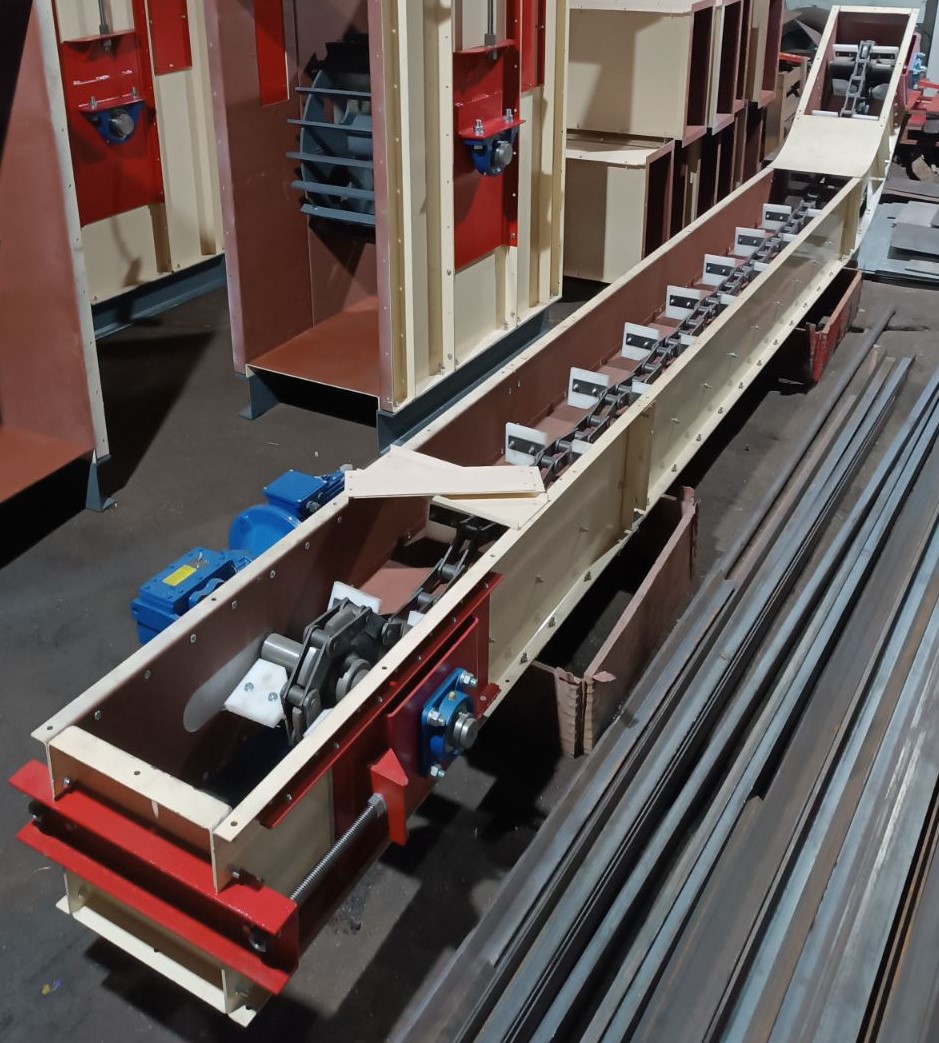

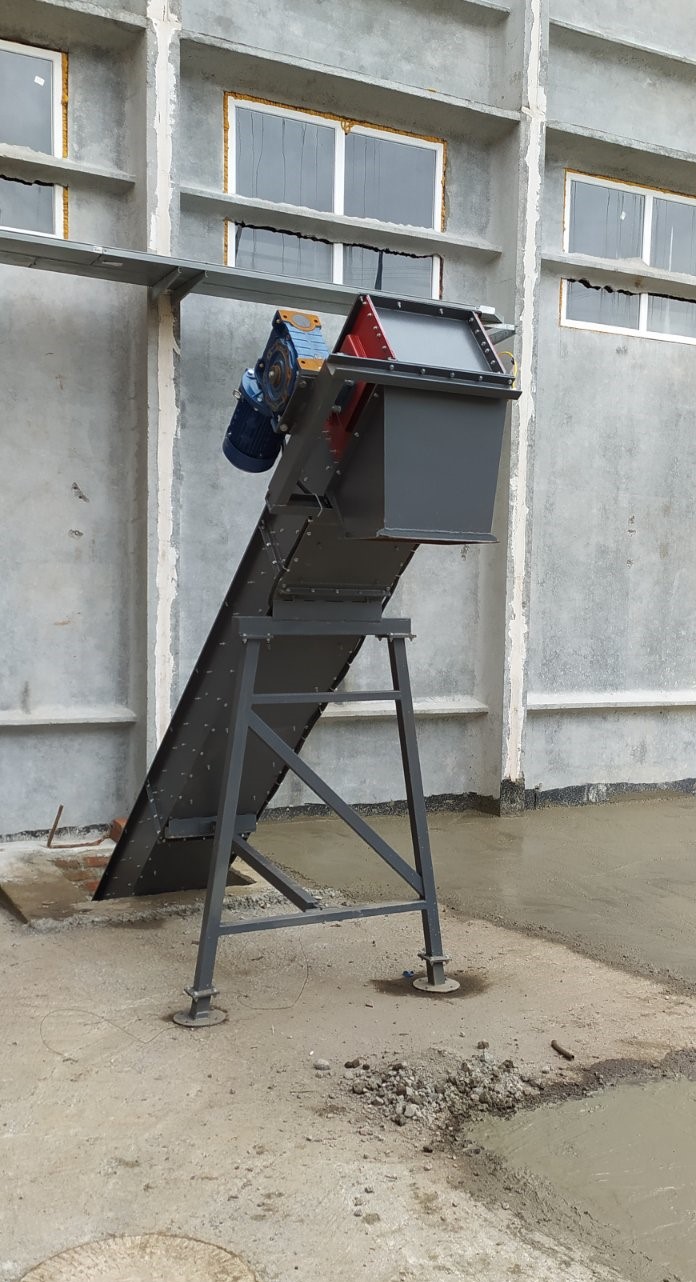

The KSCP-type steep incline chain conveyor, also known as a "gooseneck" conveyor, was developed specifically for these tasks. This inclined conveyor combines horizontal and inclined sections, ensuring a smooth lift of the product at an angle ranging from 10 to 85 degrees.

It is the ideal solution for transporting grain and compound feed products (wheat, corn, sunflower seeds, meal, soy) in space-constrained environments.

Design Features and Key Advantages

The steep incline chain conveyor features a range of unique engineering solutions that make it reliable and convenient to operate.

A Smart Design for Easy Maintenance

Often, these conveyors are installed with a bypass hopper for unloading trucks, which complicates access to the lower section. We have solved this problem: the tension section is combined with the drive section in the upper part of the conveyor. This allows all maintenance to be performed from above in a convenient and safe location, which is a significant advantage.

Reliability and Durability

• Casing: Manufactured from structural, galvanized, or stainless steel. A special double bottom (2-3 mm thick) guides the product flow and supports the return side of the chain.
• Components: Shafts and sprockets are made from high-strength steel (St45, St40X), and the bearing assemblies are sourced from reputable manufacturers with an extended service life.
• Tensioning: Consistent chain tension is maintained by a reliable mechanism based on a trapezoidal screw.

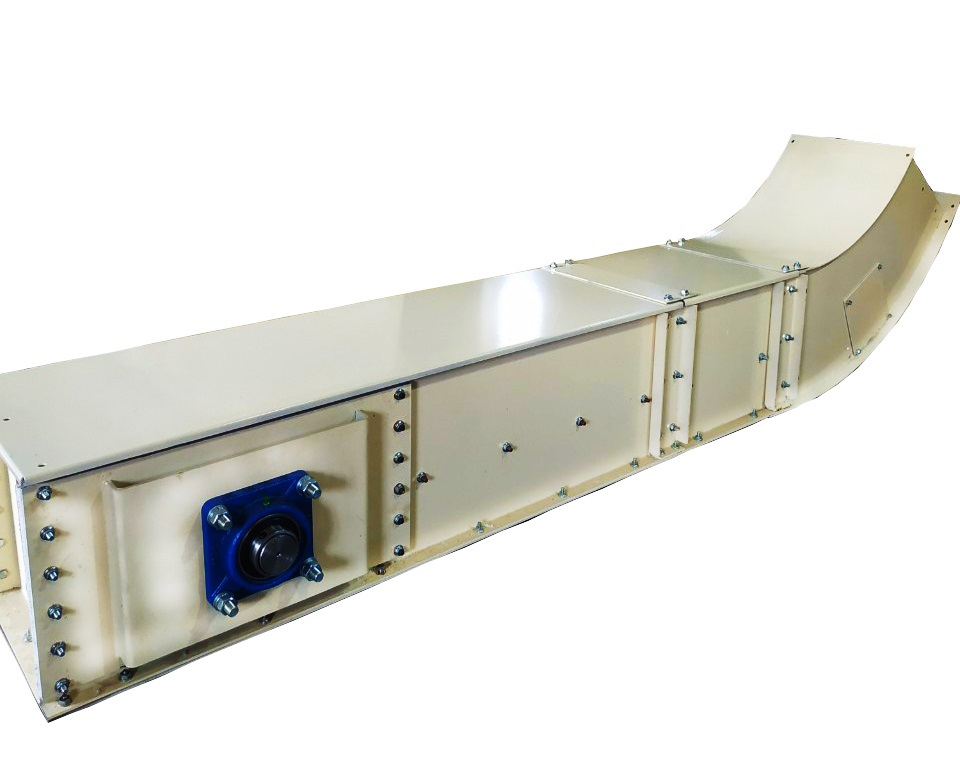

• Smooth Transition: A special curved section ensures a smooth transition of the chain from the horizontal to the inclined part, significantly reducing wear on the scrapers and the chain. Inspection hatches are provided for cleaning.

How to Order and Buy a Steep Incline Conveyor

If you want to buy a reliable inclined conveyor for your facility, you can order it directly from the manufacturer. We offer a full cycle of services, from design to production.

Each steep incline chain conveyor is individually calculated to meet your specific needs. For full automation and safe operation, we equip the machinery with modern sensors:

• Product choke/backup sensor.
• Chain break sensor.
• Shaft rotation sensor.

Contact our specialists for a consultation and a cost estimate for equipment that will serve you for years to come.
