Z-shaped chain conveyor

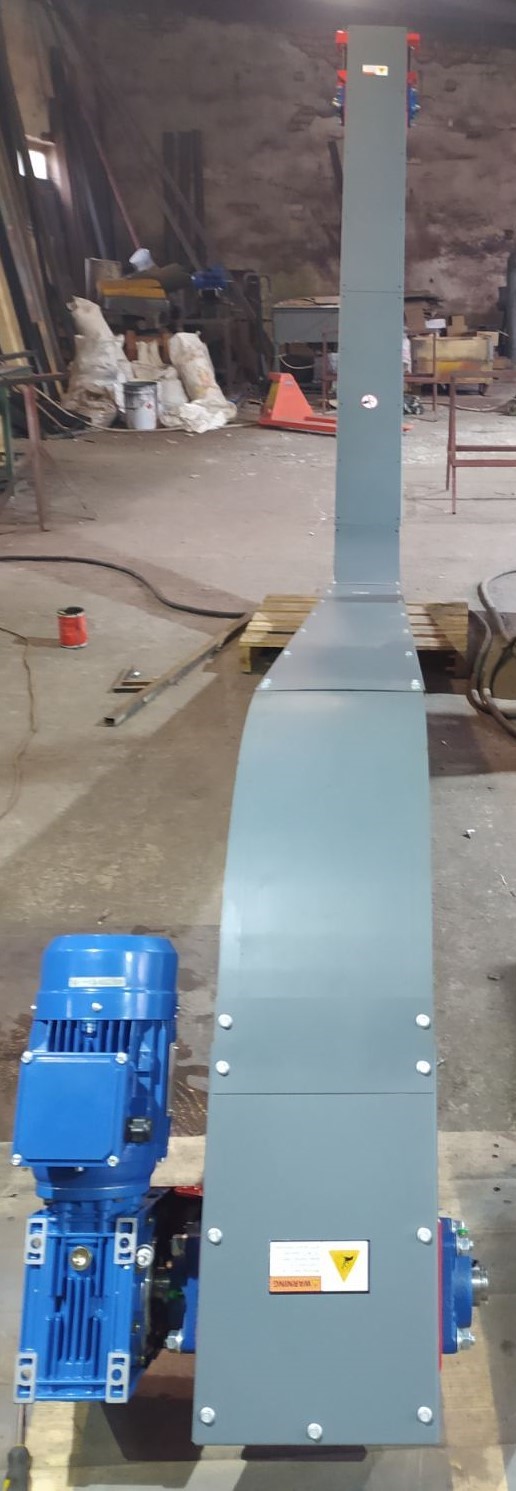

KSLT Z-Shaped Conveyor

When you need to move a bulk product along a trajectory with multiple horizontal and vertical sections in tight conditions, the KSLT-type Z-shaped chain conveyor is the best solution. This equipment allows you to replace several separate conveyors with a single unit, saving space, energy, and simplifying maintenance. It is ideally suited for transporting grain, compound feed, soy, and other bulk materials.

Advantages and Design Features of the Z-Shaped Conveyor

The Z-shaped conveyor is specifically designed for operation in small spaces where compact transport without intermediate transfers is required.

Unique Trajectory and Gentle Handling

The main feature of this conveyor is its ability to move product along a complex trajectory with incline angles of up to 85 degrees. Special elements in the curved sections ensure the product passes through freely, while polymer scrapers prevent wear on the structural components, guaranteeing gentle handling of the cargo.

Reliable Construction of the Z-Shaped Conveyor

• Casing: Sections ranging in length from 300 mm to 2500 mm are manufactured based on the product type and required capacity.
• Double Bottom: Installed along the entire length of the conveyor to prevent product spillage onto the return side of the chain and to create the necessary backpressure for efficient transport.
• Chain and Scrapers: The traction chain is selected according to load calculations (either Ukrainian or imported), and the scrapers are made from modern polymers (polyethylene, caprolon, polyurethane) that do not damage the product.
• Tensioning Mechanism: For maximum compactness, the tensioning elements can be integrated directly into the drive section, which allows a standard tensioning section to be replaced with a simple end section.

How to Order and Buy a Z-Shaped Conveyor in Ukraine

If you want to buy or order a Z-shaped chain conveyor in Ukraine, the process begins with defining your needs. Each conveyor is custom-designed.

During the ordering stage, all details are discussed, including additional options for automation and control:

• Control cabinet.
• Sensors for product choke/backup, speed, and chain break.
• Status indicator lights.

Contact our specialists, and we will help you design and manufacture equipment that will perfectly solve your logistical challenges.
